Strut Channel

System Overview

Support has a standard width of 41mm and height of 21mm, 41mm, 62mm and 82mm.

The Channel support is a traditional and time-tested support system that includes a simple C-shaped profile. Various brackets and accessories are used to bolt the steel sections together to form a support configuration. Channel support are available in single C and double C configurations, perforated and non-perforated types. It is compact and has good strength.


Basic Parameters

Material	Mild steel/SS316L/Pre-gal steel
Finish	HDG/Pickling passivation/Electroplate/Powdercoating
Certification	ABS/BV/CCS
Width	41x41,41x21,41x62，x41x82
Height	/
Length	3000mm/6000mm

Design Details

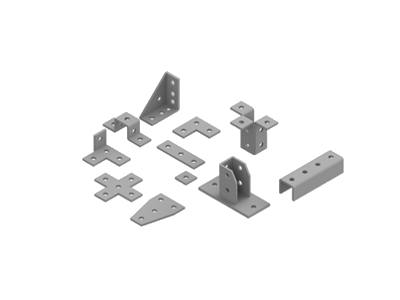

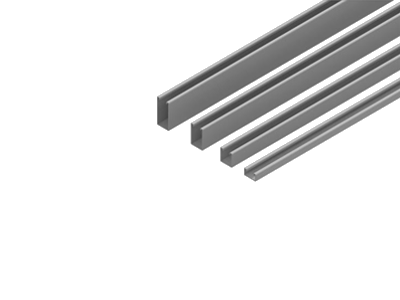

Standard Size Steel supportprovides standard dimensions such as 41x41, 41x21, 41x62, 41x82.	Spring Nut Connection Support uses spring nuts to connect the channel to channel, the channel to accessories, and the installation is flexible and convenient.	Comprehensive Fittings Support can provide a variety of connection fittings to meet various connection requirements, and customized connection accessories can be provided for special working conditions.
