Aluminum Cable Ladder

System Overview

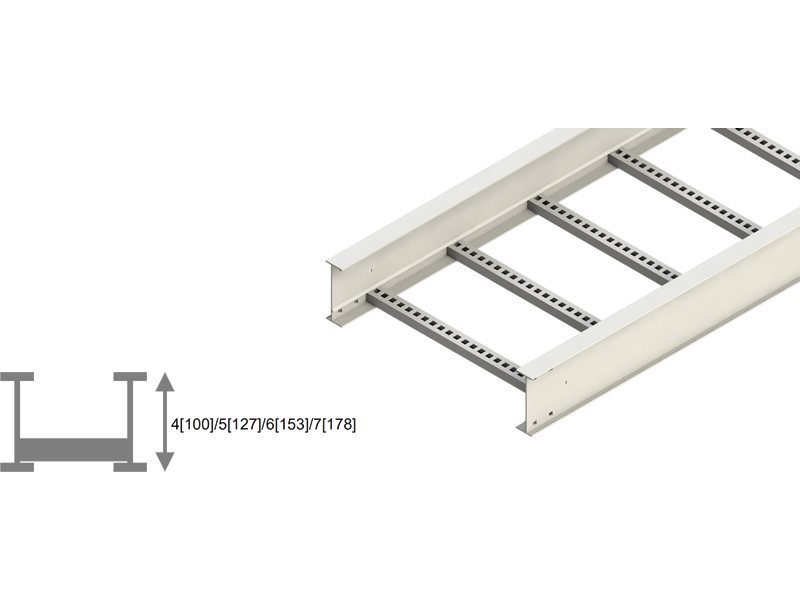

    Aluminum cable ladder, for heavy duty job, comes in standard height of 4"[100mm]/5"[127mm]/6"[153mm]/7"[178mm]

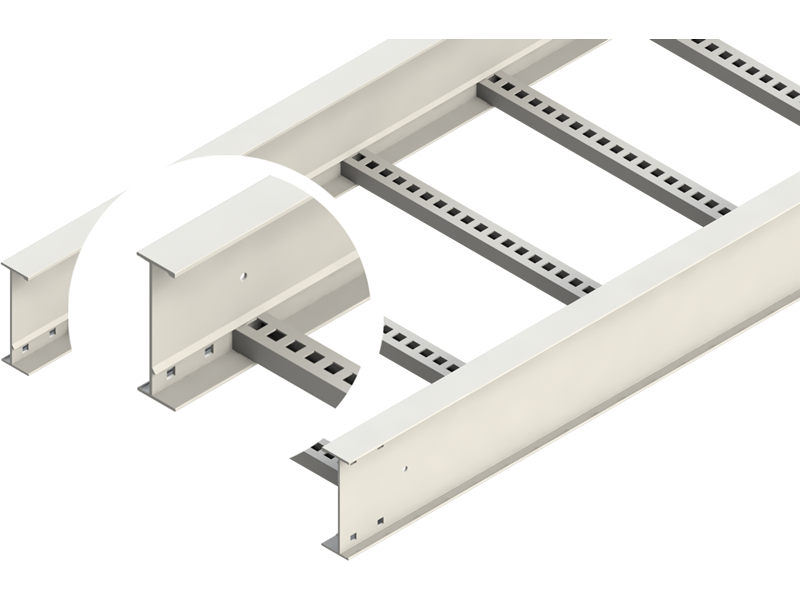

    The Cable Ladder System is designed for lightweight handling, installation, and long corrosion resistance in mind. As well as having lightweight material properties, aluminium is very resistant to a lot of corrosive elements.

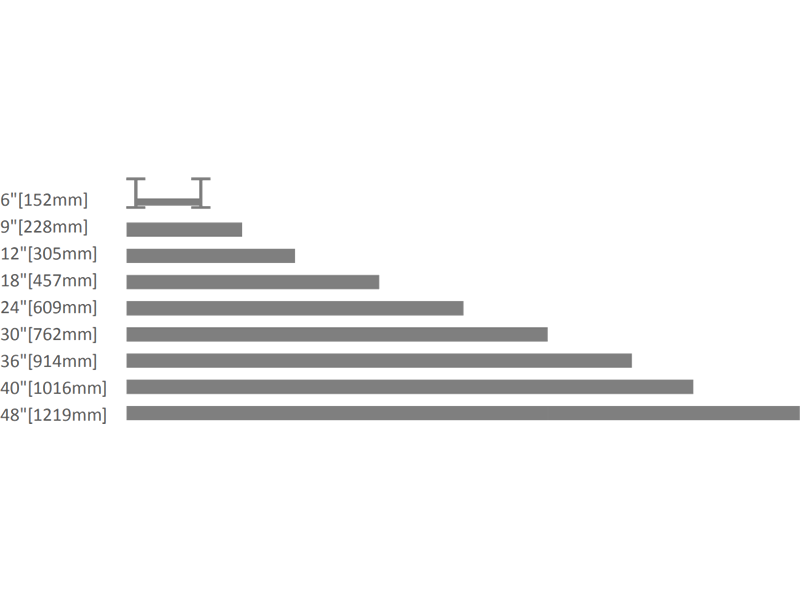

1. straight section:   standard width comes in 100, 150, 300, 450, 600, 750, 900, 1000 and 1200mm ,length comes in 3000 and 6000mm, height comes in 100,125 and 150mm.

2. horizontal elbow:   standard angle comes in 30, 45, 60 and 90 degress, standard radius comes 300,600 and 900mm.>

3. horizontal tee:   standard radius comes 300,600 and 900mm.

4. horizontal cross:  standard radius comes 300,600 and 900mm.

5. vertical tee:   standard radius comes 300,600 and 900mm.

6. reducer:   left reducer as shown, right and straight reducer supplied on request.

7. internal riser:   standard radius comes 300,600 and 900mm.

8. external riser:   standard radius comes 300,600 and 900mm.

9. combination riser part

10. splice connector

11. horizontal splice connector

12. vertical splice connector

13. reduction splice connector

14. straight flat cover

15. heavy duty cover clamp

16. universal cover clamp

17.flat cover for horizontal elbow

18. barrier strip

19. blind end

20. drop out plate

Basic Parameters

Design Details
